Ethernet cables (RJ45) are available in two versions - normal (terminated with connectors at both ends) and pigtail (connector on one end only) - and can be supplied in various lengths.
Normal

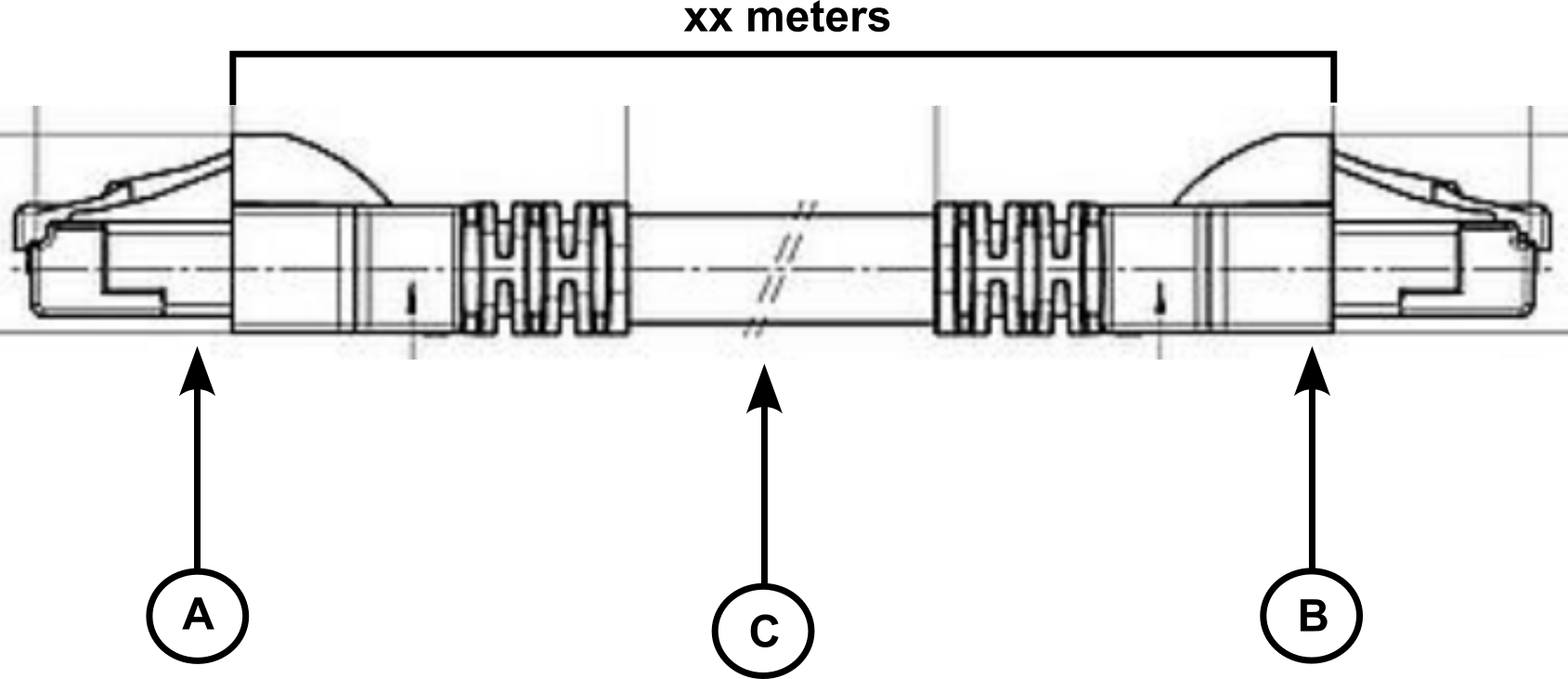

Cable assembly overview
For Ethernet cables with RJ45 connectors at both ends, the assembly consists of three parts:
-
Connector A: RJ45 plug, 8-pin male. Connects to the MRU.
-
Connector B: RJ45 plug, 8-pin male. Connects to the system output.
-
Cable (C): Standard cat5e/6 Ethernet cable (8 wires), type: T568A.

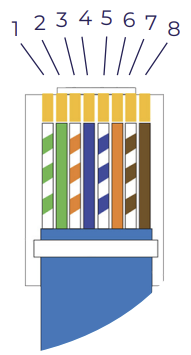

RJ45 connector view
Overview of the male RJ45 connector, including pin and wire color coding, compatible with normal Ethernet cables.
Pinout diagram
Pinout diagram specifying the cable assembly from connector A to connector B, including pin number, wire color, and gauge/pair connections.
|
ETHERNET NORMAL CABLE ASSEMBLY PINOUT DIAGRAM (RJ45) |
|||
|---|---|---|---|
|
PIN (connector A) |
COLOR |
PAIR |
PIN (connector B) |
|
1 |
White/green |
Pair 3 |
1 |
|
2 |
green |
Pair 3 |
2 |
|
3 |
white/orange |
Pair 2 |
3 |
|
4 |
blue |
Pair 1 |
4 |
|
5 |
white/blue |
Pair 1 |
5 |
|
6 |
orange |
Pair 2 |
6 |
|
7 |
white/brown |
Pair 4 |
7 |
|
8 |
brown |
Pair 4 |
8 |
Pigtail

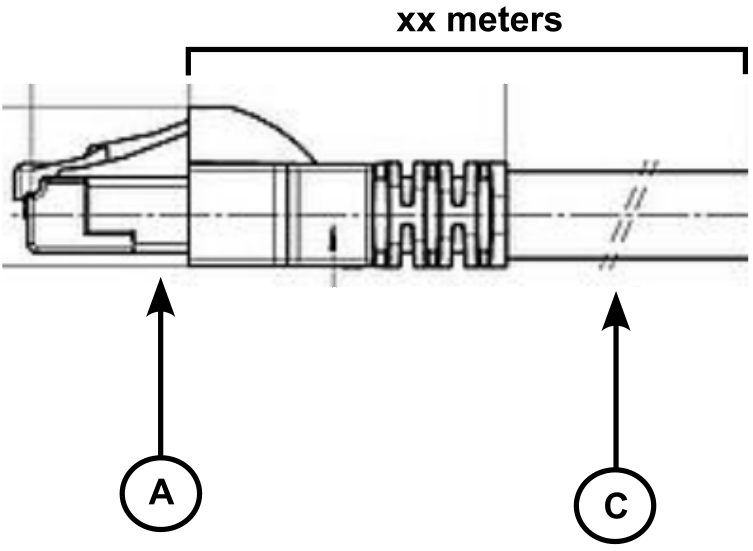

Cable assembly overview
For Ethernet cables with RJ45 connectors on one end only, the assembly consists of two parts:
-
Connector A: RJ45 plug, 8-pin male. Connects to the MRU.
-
Cable (C): Standard cat5e/6 Ethernet cable (8 wires), type: T568A.
RJ45 connector view
Overview of the male RJ45 connector, including pin and wire color coding, compatible with normal Ethernet cables.
Pinout diagram
Pinout diagram specifying the pigtail cable assembly, including pin number, wire color, and gauge/pair connections.
|
ETHERNET PIGTAIL CABLE ASSEMBLY PINOUT DIAGRAM (RJ45) |
||
|---|---|---|
|
PIN (connector A) |
COLOR |
PAIR |
|
1 |
White/green |
Pair 3 |
|
2 |
green |
Pair 3 |
|
3 |
white/orange |
Pair 2 |
|
4 |
blue |
Pair 1 |
|
5 |
white/blue |
Pair 1 |
|
6 |
orange |
Pair 2 |
|
7 |
white/brown |
Pair 4 |
|
8 |
brown |
Pair 4 |
MRU signal diagram
To find the associated MRU signal diagram, check out section “MRU Compact signal diagram” here .
