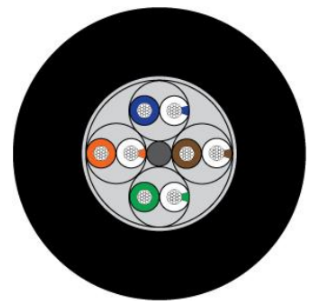

Overview of the shallow water cable cross-section, along with associated characteristics tables.
|
CONSTRUCTION CHARACTERISTICS (SHALLOW WATER CABLE) |
|
|---|---|
|
ITEM |
SPECIFICATION |
|
Twisted pairs |
0,25 mm^2 (#24AWG) stranded tinned copper wires 19/.005, twisted together, insulated with Polypropylene, approx. 0,35 mm wall thickness (4 off) |
|
Fillers |
Rod filler for roundness |
|
Binder |
An overall clear tape wrap |
|
Outer jacket |
Polyurethane jacket. 85A Shore Hardness. Color black. Nominal thickness approx. 1,27 mm |
|
Color code |
Twisted pair #1: Brown & White/Brown
|
|
MECHANICAL CHARACTERISTICS (SHALLOW WATER CABLE) |
|
|---|---|
|
PARAMETER |
VALUE |
|
Diameter |
Nom. 9,65 mm |
|
Weight in air |
82 kg/km |
|
Weight in seawater |
6 kg/km |
|
Minimum bending radius |
102 mm |
|
Depth rating |
300 m |
|
ELECTRICAL CHARACTERISTICS (SHALLOW WATER CABLE) |
|
|---|---|
|
PARAMETER |
VALUE |
|
Operating voltage |
300 V |
