Shallow water cables are available in two versions - normal (terminated with connectors at both ends) and pigtail (connector on one end only) - and can be supplied in various lengths.
Normal

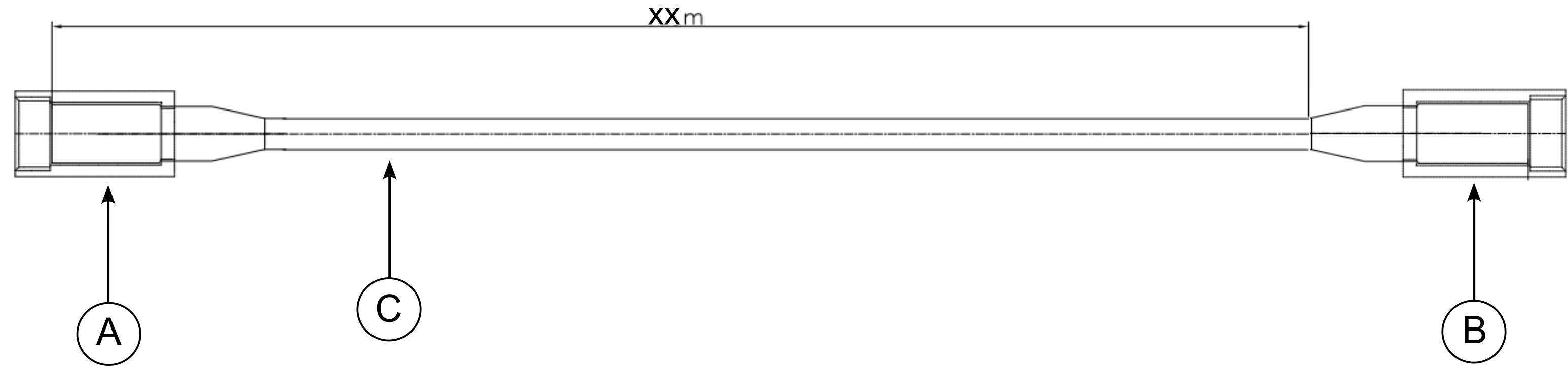

Cable assembly overview
For shallow water normal cables with connectors at both ends, the assembly consists of three parts:
-
Connector A: SubConn straight plug, 8-pin. Female (MCIL8F) or male (MCIL8M). Connects to the MRU.
-
Connector B: SubConn straight plug, 8-pin. Female (MCIL8F) or male (MCIL8M). Connects to the system output.
-
Cable (C): 4 × twisted pairs, length = 2-50m. For more information about the cable, see here .
Supported cable lengths and associated product numbers for shallow water normal cables are given below. For complete cable product list, see here .
|
SHALLOW WATER NORMAL CABLE PRODUCT LIST |
|
|---|---|
|
LENGTH [m] |
PRODUCT NUMBER |
|
2 |
30111 |
|
5 |
30112 |
|
10 |
30113 |
|
20 |
30114 |
|
50 |
30115 |

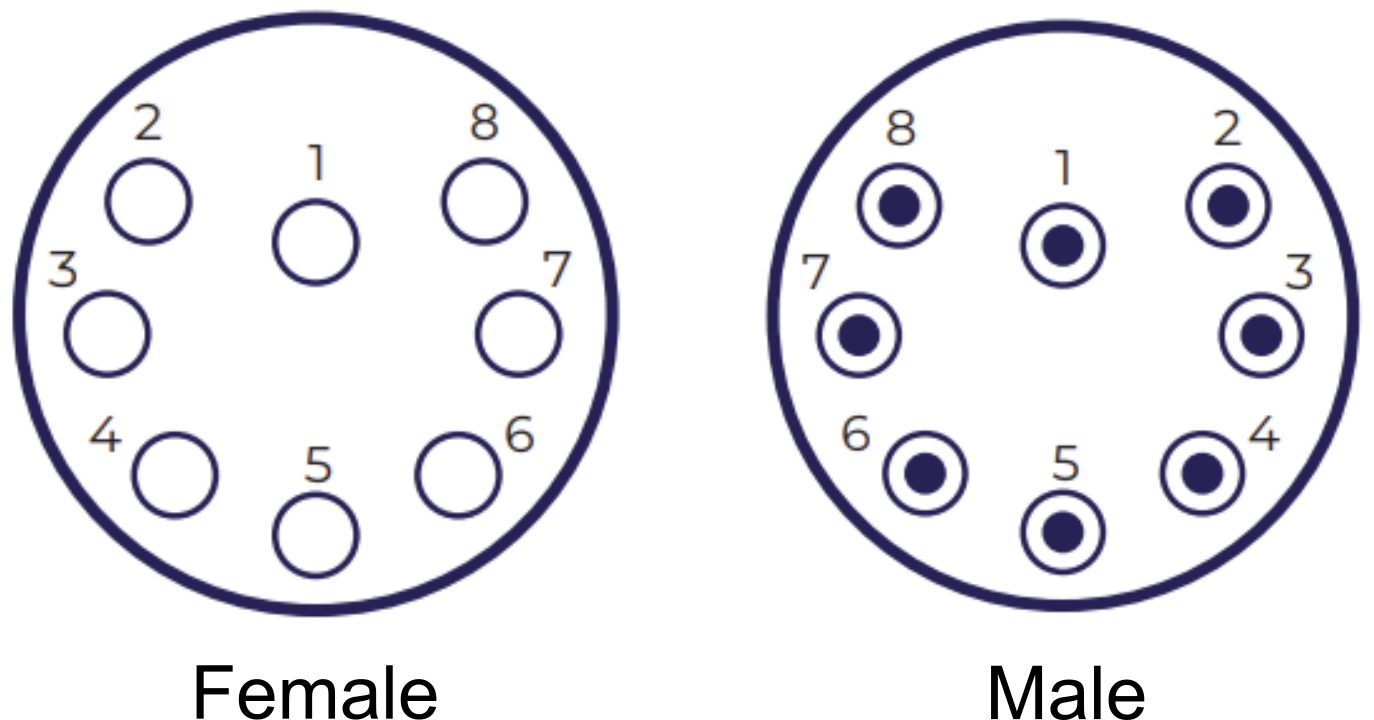

SubConn connector view
Overview of female and male SubConn connectors, both supported for the shallow water normal cable.
Pinout diagram
Pinout diagram specifying the cable assembly from connector A to connector B, including pin number, wire color, and gauge/pair connections.
|
SHALLOW WATER NORMAL CABLE ASSEMBLY PINOUT DIAGRAM |
|||
|---|---|---|---|
|
PIN (connector A) |
COLOR |
PAIR |
PIN (connector B) |
|
1 |
Brown |
Pair 1 |
1 |
|
2 |
White/Brown |
Pair 1 |
2 |
|
3 |
Blue |
Pair 2 |
3 |
|
4 |
White/Blue |
Pair 2 |
4 |
|
5 |
Orange |
Pair 3 |
5 |
|
6 |
White/Orange |
Pair 3 |
6 |
|
7 |
Green |
Pair 4 |
7 |
|
8 |
White/Green |
Pair 4 |
8 |
Pigtail

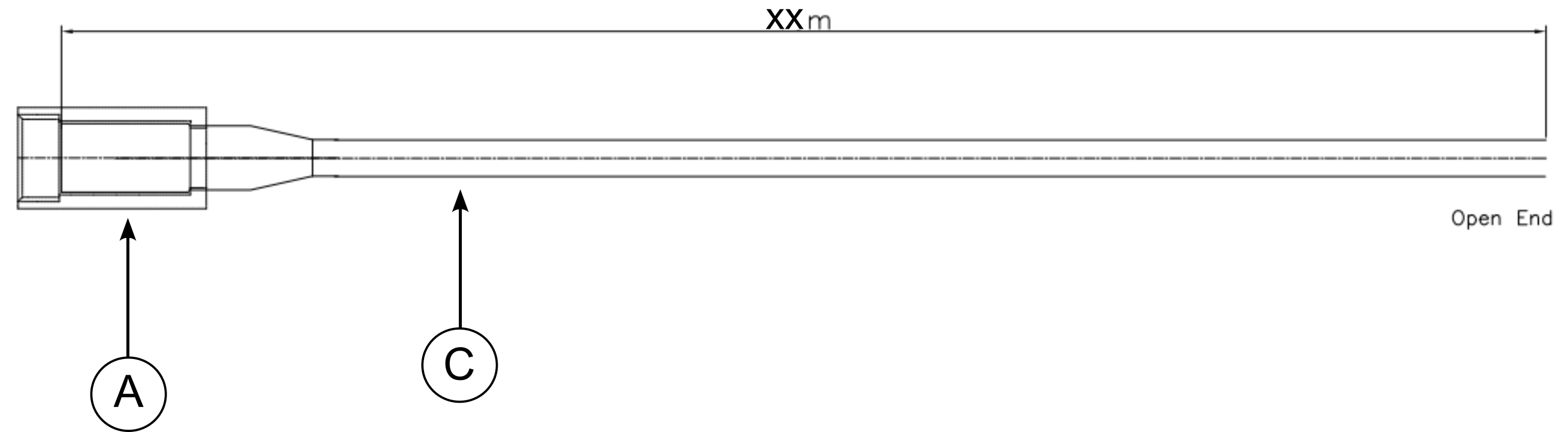

Cable assembly overview
For shallow water pigtail cables with connectors on one end only, the assembly consists of two parts:
-
Connector A: SubConn straight plug, 8-pin. Female (MCIL8F) or male (MCIL8M). Connects to the MRU.
-
Cable (C): For more information about the cable, see here .
Supported cable lengths and associated product numbers for shallow water normal cables are given below. For complete cable product list, see here .
|
SHALLOW WATER PIGTAIL CABLE PRODUCT LIST |
|
|---|---|
|
LENGTH [m] |
PRODUCT NUMBER |
|
2 |
30116 |
|
5 |
30117 |
|
10 |
30118 |
|
20 |
30119 |
|
50 |
30120 |
SubConn connector view
Overview of female and male SubConn connectors, both supported for the shallow water pigtail cable.
Pinout diagram
Pinout diagram specifying the pigtail cable assembly, including pin number, wire color, and gauge/pair connections.
|
SHALLOW WATER PIGTAIL CABLE ASSEMBLY PINOUT DIAGRAM |
||
|---|---|---|
|
PIN (connector A) |
COLOR |
PAIR |
|
1 |
Brown |
Pair 1 |
|
2 |
White/Brown |
Pair 1 |
|
3 |
Blue |
Pair 2 |
|
4 |
White/Blue |
Pair 2 |
|
5 |
Orange |
Pair 3 |
|
6 |
White/Orange |
Pair 3 |
|
7 |
Green |
Pair 4 |
|
8 |
White/Green |
Pair 4 |
MRU signal diagram
To find the associated MRU signal diagrams, check out section “MRU Marine S signal diagram” here .
Junction box signal diagram
To find the associated junction box diagram compatible with shallow water normal and pigtail cables, check out the signal diagrams for junction box 2.0/3.0 here .
Connector compatibility
Both connector A and connector B can be either male or female, and they share the same internal pinout arrangement. Hence, they are mutually compatible. This applies to both normal and pigtail cable assemblies.
