This page provides an overview of the mechanical interface of the MRU Subsea.

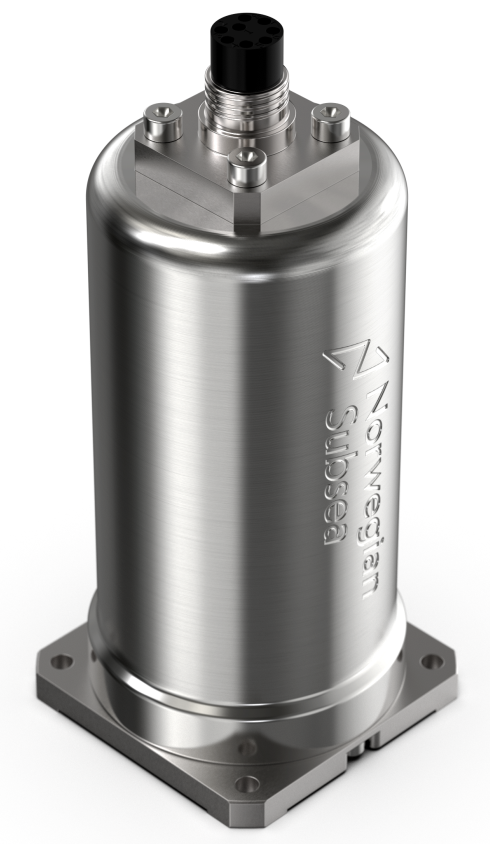

Design
The MRU Subsea have 4 mounting holes and the 2 alignment holes / slots on the center line. The MRU is mounted to a solid surface using 4 x M5 screws. 4 mm diameter alignment dowels are recommended for best alignment during installation. The dimensions of the MRU Subsea are:
-
Length: 76 mm
-
Width: 76 mm
-
Height: 180 mm
Note
The MRU Subsea 3000/6000/9000 are identical when considering geometry, construction and materials.
Technical drawings
MRU Subsea top, bottom and side view technical drawings. All dimensions are in millimeters. For complete technical drawings (PDF and STEP files) of the MRU Subsea, see here.

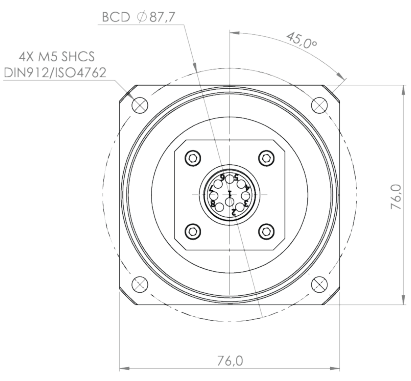

Top view

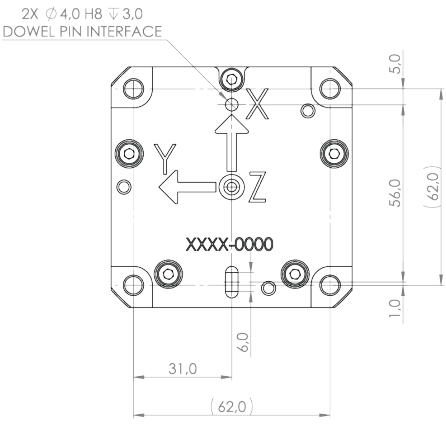

Bottom view

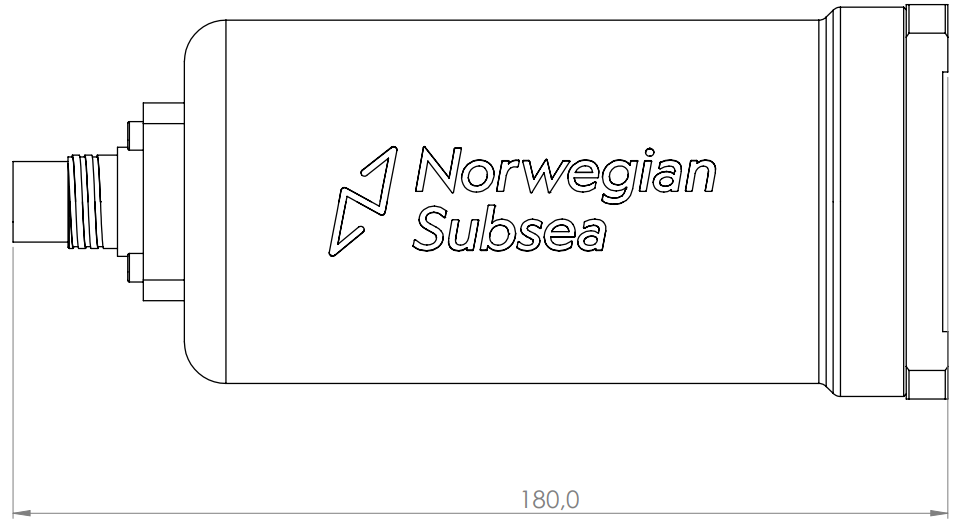

Side view

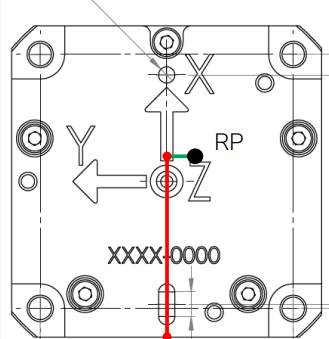

Reference point
Reference point (RP) from center aft of MRU:
-
X: 44.1 mm
-
Y: -3.5 mm
-
Z: -33.0 mm
Side view
Bottom view
